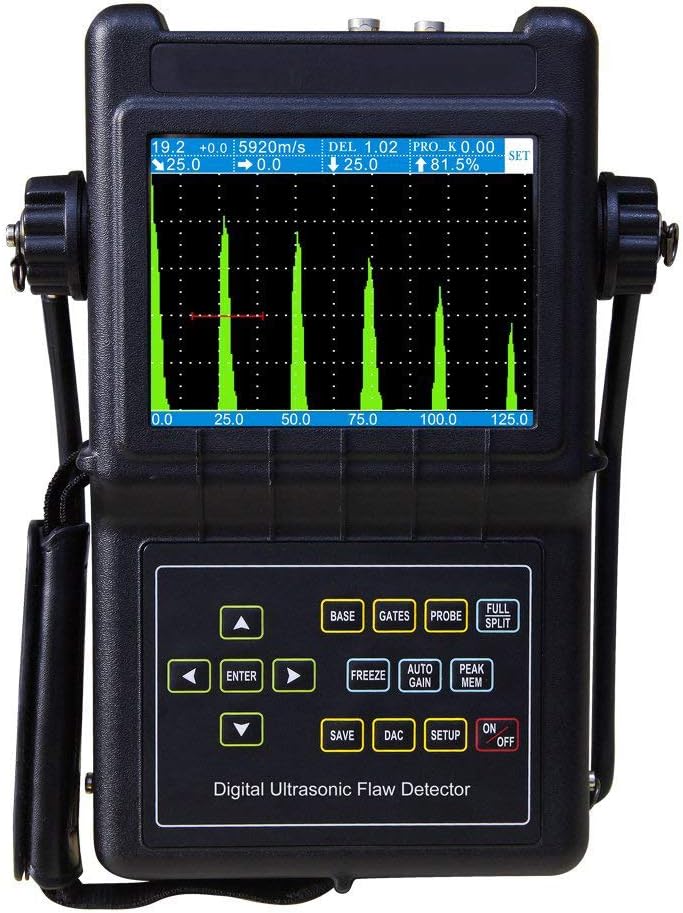

Portable Digital Ultrasonic Flaw Detector one straight beam probe and one angle beam probe with NDT Test Equipment True Color TFT LCD Display 1000 sets test datas store

If you need optional accessories , please contact me directly . YUT2600 technical parameters: Operating frequency: (0.5-15) MHz Detection range: (0-4500) mm (steel longitudinal wave) Material sound speed: (1000-9999) m/s Working mode: pulse echo, twin crystal Pulse shift: (0-2000) mm Probe zero point: (0-99.99) us Gain adjustment: (0-110) dB, 0.1dB, 2dB, 6dB step, fully automatic adjustment Vertical linearity error: ≤3% Horizontal linearity error: ≤0.3% Resolution: ≥32dB (5P14) Dynamic range: ≥30dB Sensitivity margin: ≥60dB (depth 200mm Φ2 flat bottom hole) Communication: RS232 interface and computer connection Average noise level: ≤10% TFT color LCD: 320*240 5.7-inch high-brightness TFT display LCD Mass storage: can store up to 1000 data sets, including waveforms, curves, parameters, etc. (including 1000 channels in the traditional sense) Gate alarm: Incoming wave/loss door alarm, width, height and position are continuously adjustable Battery working time: 10 hours Working temperature: -10 ° C ~ 50 ° C Power supply: 220VAC, 11VDC 6600mA large capacity lithium battery, can work continuously for 9 hours Dimensions: 270mmX190mmX60mm Weight: 1.4Kg without battery Standard configuration: ● 1 host ● 1 straight probe ● 1 oblique probe ● 2 probe lines ● 1 power adapter ● Lithium battery 1 group ● Manual 1 ● 1 certificate, warranty card, and packing card ● 1 case ● Communication software CD, 1 ● Communication cable 1 Optional accessories: ● Various probes ● Various connection cables ● Detecting test block

• Full-screen display function: Make the echo display area cover the entire screen, giving the worker the maximum window experience;
• Solid waveform display: increase the visual contrast of the waveform, and the quick scan is not easy to miss;
• Large-capacity memory: can store up to 1000 data sets, including waveforms, curves, parameters, etc. (including 1000 channels in the traditional sense);
• Innovative computer notebook high energy lithium battery;
• Chinese and English two operation interfaces;
